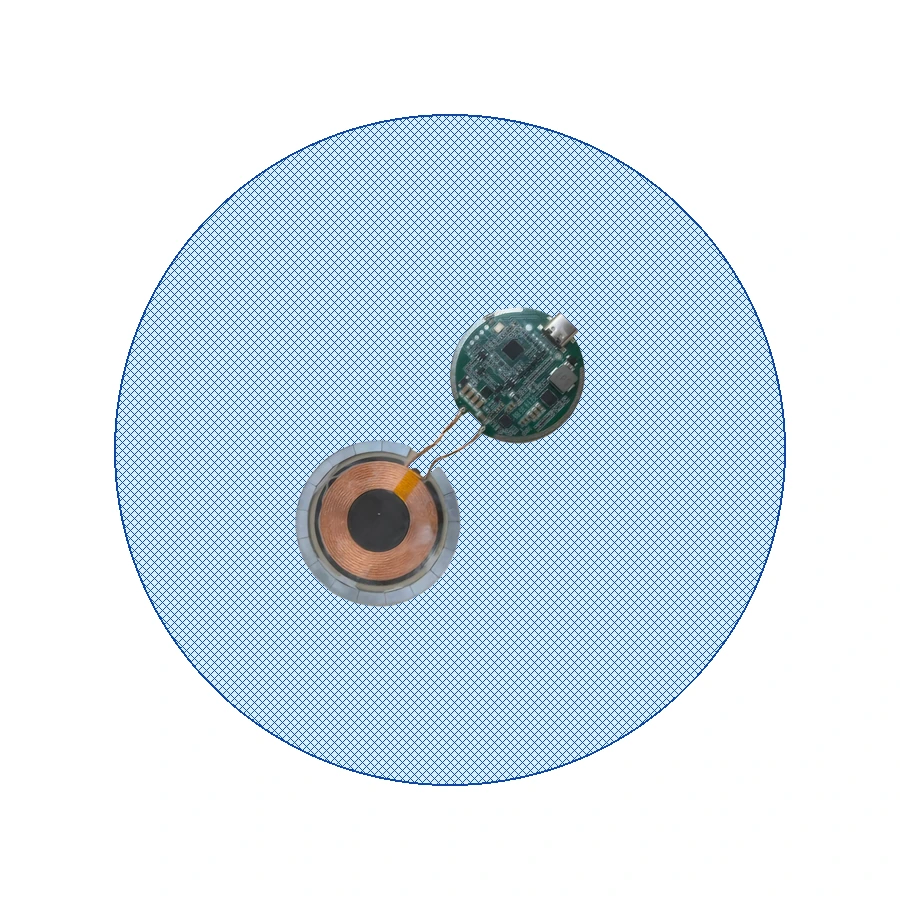

Model: JX891 / 9929C1 Chipset
A Samsung and MPP dual-protocol 15W wireless charging reference design with Qi2.1 compatibility, broad device coverage, six-layer protection and firmware upgrade capability.
Technical Solution Display
This page presents technical specifications, performance, compatibility and applications. It is not an online retail listing.
Solution Overview
| Wireless charging chipset | 9929C1 |
|---|---|
| Charging architecture | Samsung + MPP dual protocol |
| Maximum wireless output | 15W |
| Compatible protocols | Samsung 15W, Apple 15W, EPP 15W, PPDE 10W, Apple 7.5W and BPP |
| Coil | Qi2 standard coil |
| Spacer height | 1 mm |
| Input protocols | PD and QC2.1 |
| Fixed-voltage input | 5V/3A or 9V/3A |
| Protection | Overvoltage, undervoltage, overcurrent, overtemperature, FOD and automatic thermal power reduction |
| Firmware | Offline upgrade supported |
Engineering Reference
Open the solution sheet in a new window to inspect every parameter at full size.
